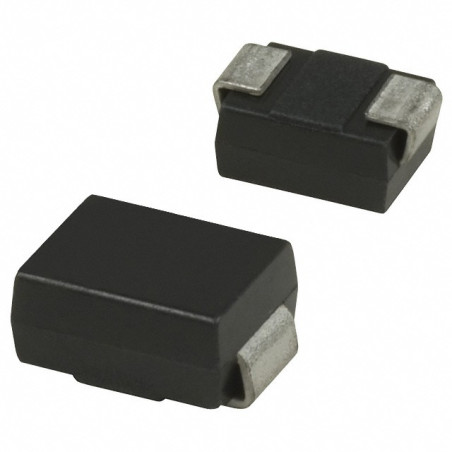

Dioda F26A - ME32A jednokierunkowa do G923

Stosowana w nowych płytach kierownic LOGITECH G923. Oryginalny opis F26A
F26A = ME32A

Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation at TA=25ºC by 10/1000µs Waveform (Fig.2)(Note 1), (Note 2), (Note 5) PPPM 600 W Power Dissipation on Infinite Heat Sink at TL =50OC PD 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) I FSM 100 A Maximum Instantaneous Forward Voltage at 50A for Unidirectional Only (Note 4) VF 3.5/5.0 V Operating Temperature Range TJ -65 to 150 °C Storage Temperature Range TSTG -65 to 175 °C Typical Thermal Resistance Junction to Lead RθJL 20 °C/W Typical Thermal Resistance Junction to Ambient RθJA 100 °C/W
