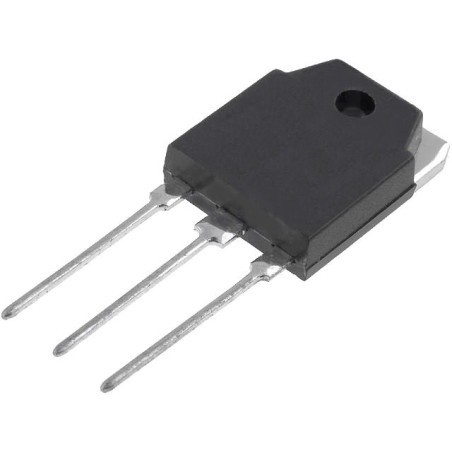

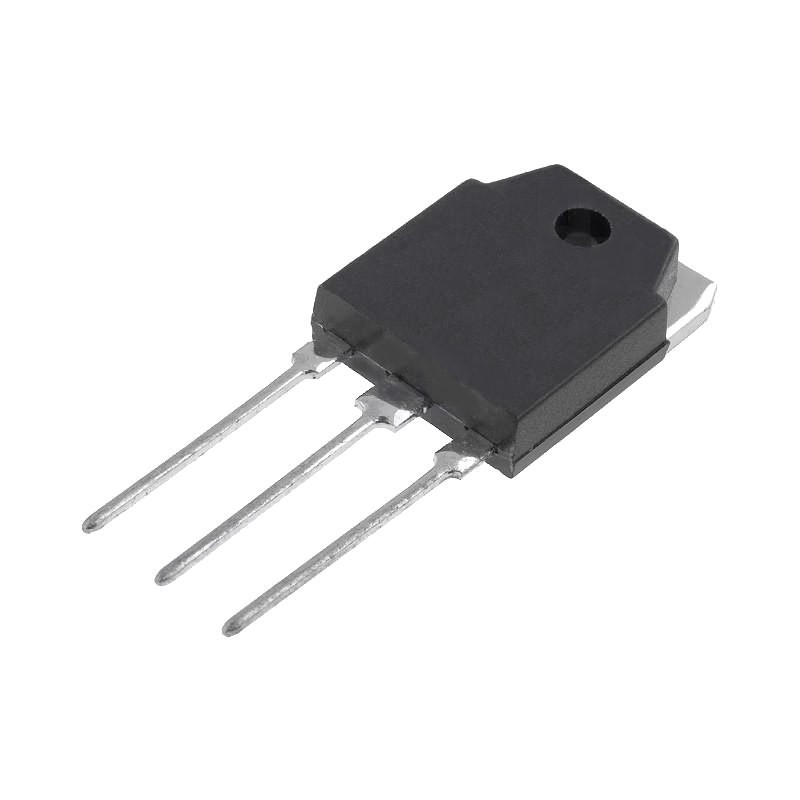

Tranzystor 2SA1264N, A1264

Silicon PNP Power Transistors :2SA1264NDESCRIPTION·With TO-3P

(TO-3P(I))  and  symbol  ·Complement to type 2SC3181N ·2SA1264 with short pin APPLICATIONS·Power amplifier applications PINNING PIN                     DESCRIPTION                     1Emitter    2 Collector;connected to   mounting base 3             Base                          Absolute maximum ratings(Ta=25°C)SYMBOL
 PARAMETER

Emitter-base voltage Open collector   -5 V
Collector  current      -8  A
Base  current      -0.8  A  PTT
otal power dissipation TC=25°C80  W
Junction temperature 150 °
CTstgStorage temperature -55~150 °C
