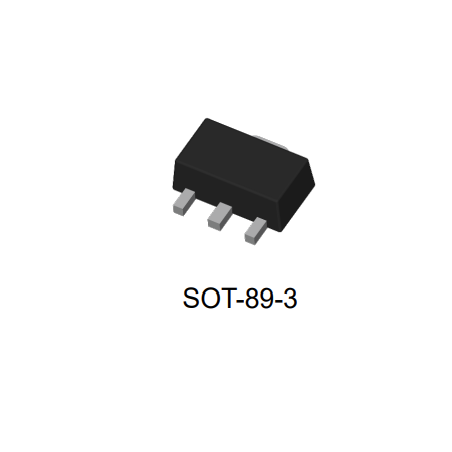

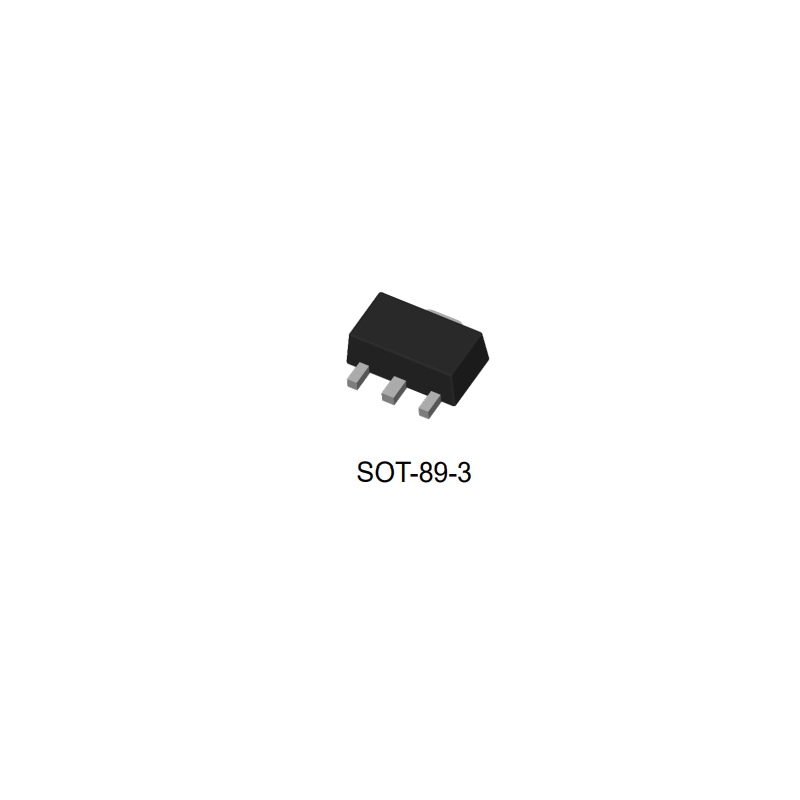

Stabilizator G28N , 3.3V AZ1117CR-3.3TG1 SOT-89

Stabilizator 3.3 V

AZ1117CR-3.3TGRG1

 do CLS Fanatec SOT-89 zamienny za AG33

Opis na układzie G28N lub podobny

Model:Current Limit: 1.35A (Typ)

 Output Noise from 10Hz to 10kHz: 0.003% of VOUT

 PSRR at IOUT = 300mA and f = 120Hz: 70dB

 Output Voltage Accuracy: ±1% (Except 1.2V Version)

 On-chip Thermal Shutdown

 Maximum Quiescent Current: IQMAX = 6mA

 Compatible with Low ESR Ceramic Capacitor

 Operation Junction Temperature: -20°C to +125°C

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)
